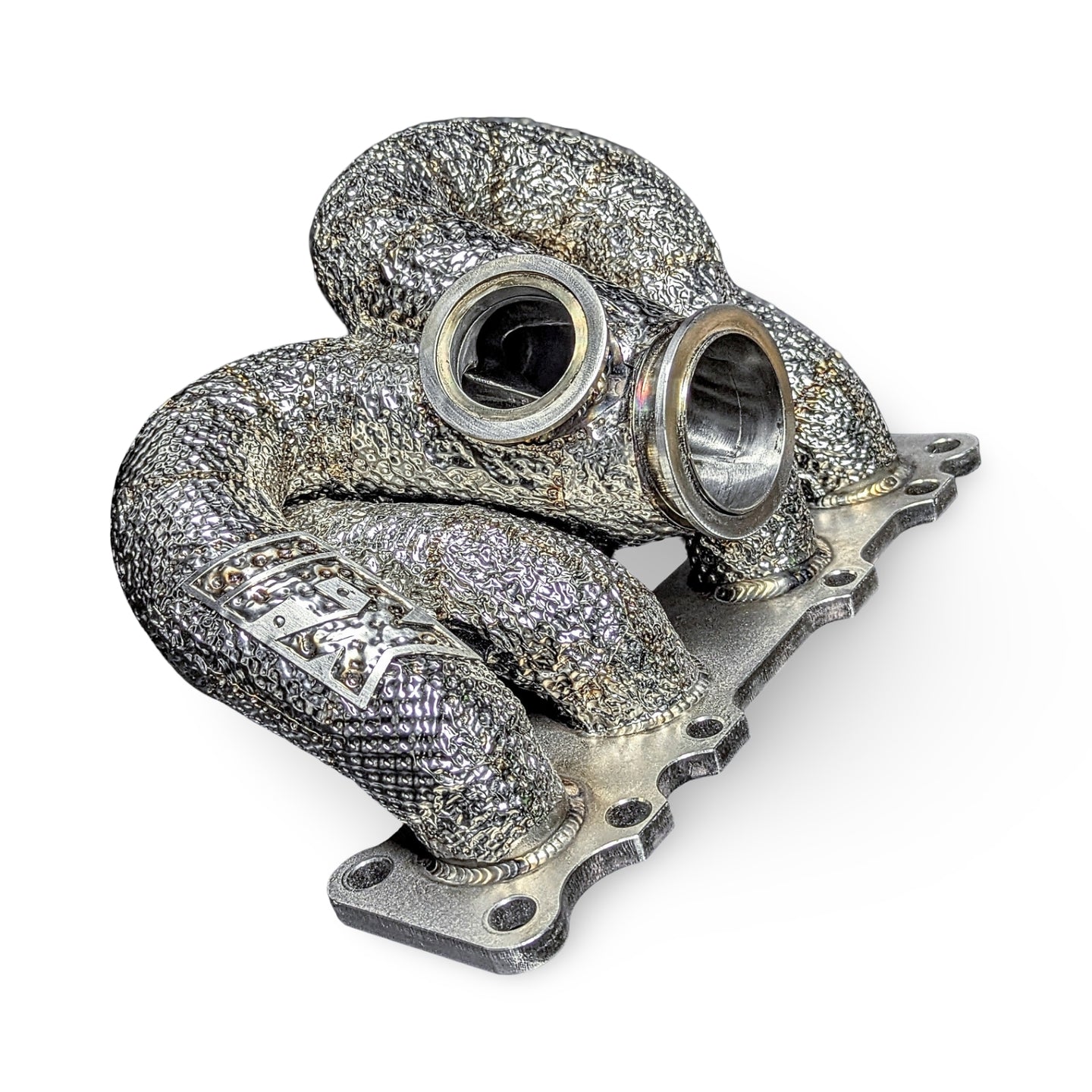

IFX i30N Hatch Turbo Manifold V-Band

After years of development, we are proud to introduce the IFX Turbo Manifold. Over the past three years, we've rigorously tested and refined our design to create a turbo manifold that delivers exceptional performance.

Crafted from high-quality stainless steel and precision TIG-welded for maximum strength and reliability, this manifold is engineered specifically for the Garrett G25 and G30 turbos. It is optimised for superior turbo response and top-end power, making it a game-changer for the Hyundai i30N.

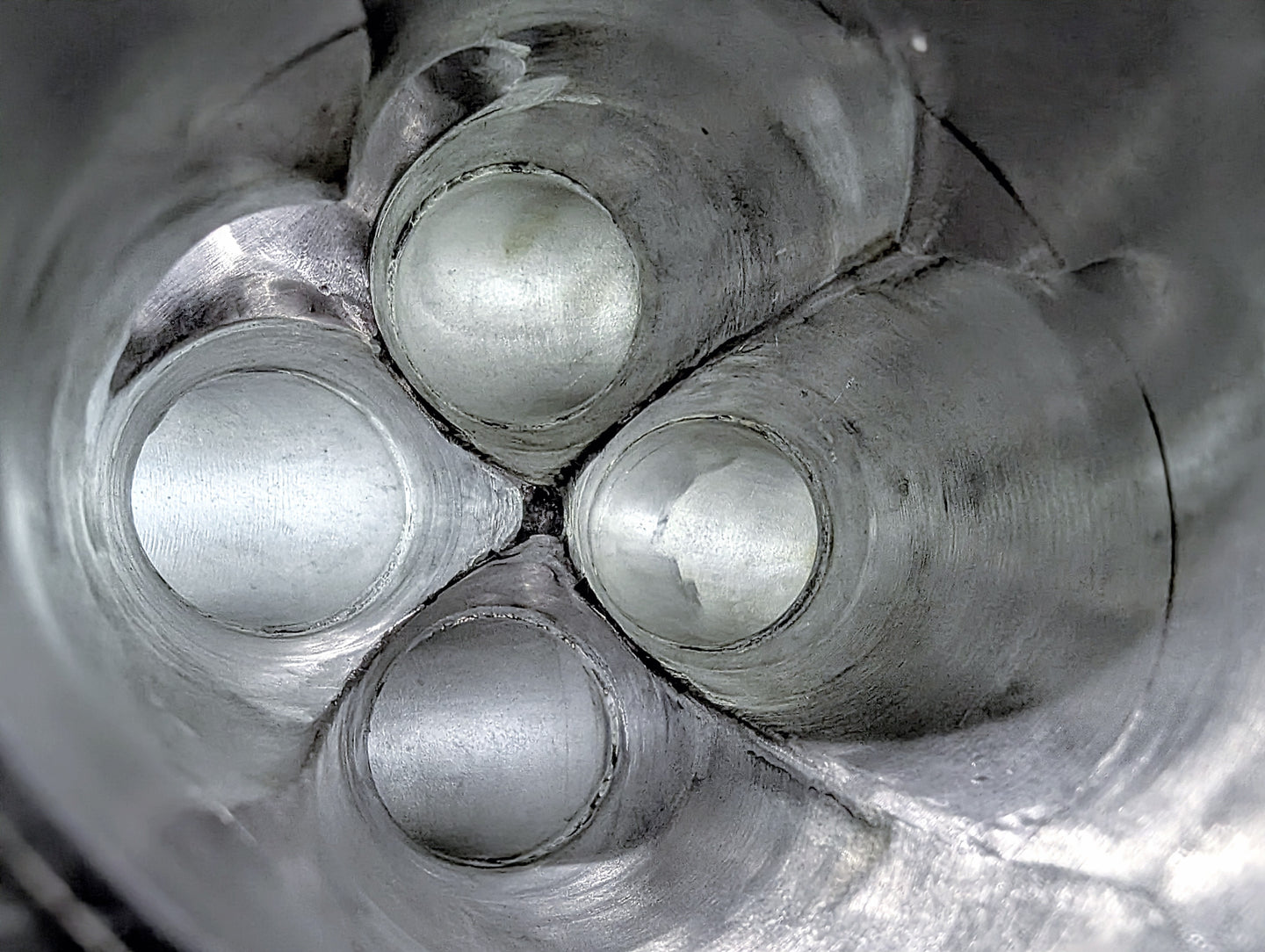

Our innovative design follows the engine firing order, producing a distinct and aggressive exhaust note. The long-form collector enhances both turbo spool and peak power, with real-world results showing 410 kW when paired with a Garrett G30-770 turbo.

The turbo placement closely mirrors the factory i30N turbo position, allowing ample space to accommodate a 3.5" or 4" dump pipe, along with a 1.75" wastegate dump pipe.

Through extensive testing, we have determined the optimal pipe size for maximum tunability and knock resistance, ensuring a perfect balance of efficiency and power.

Available in Two Configurations:

• Internal Wastegate

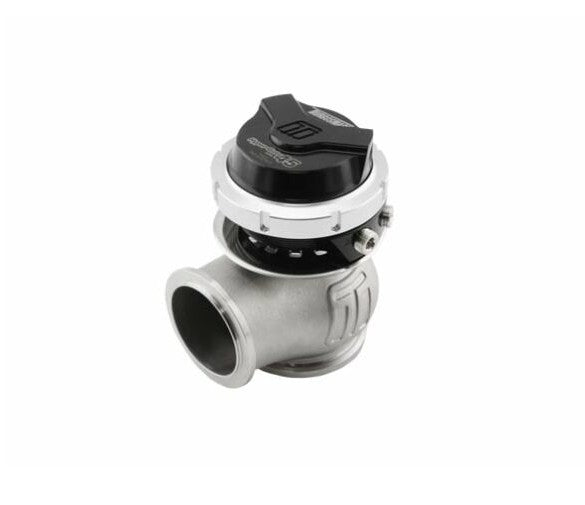

• External Wastegate, featuring a Turbosmart 45mm wastegate pre-welded onto the manifold

Optional Heat Shielding

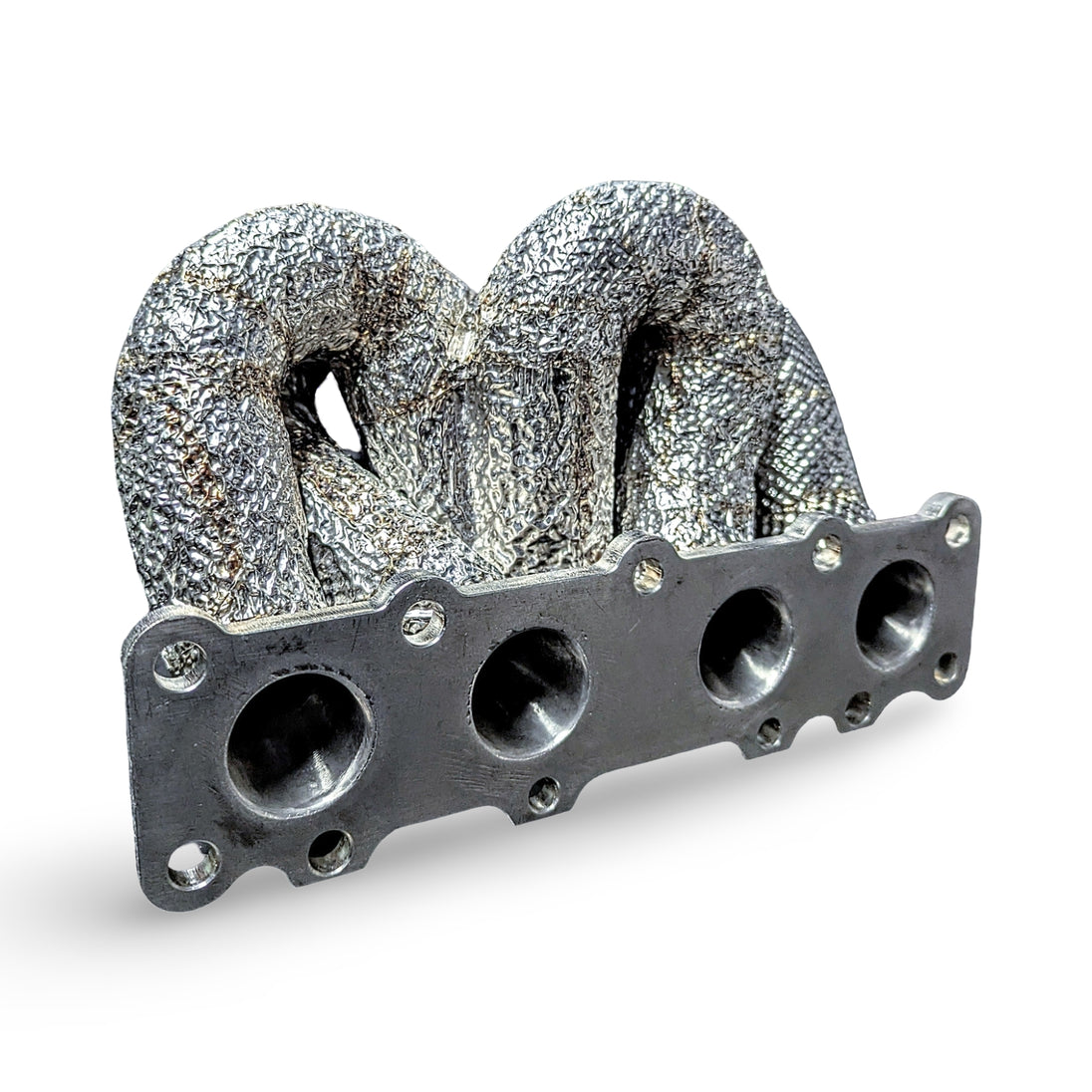

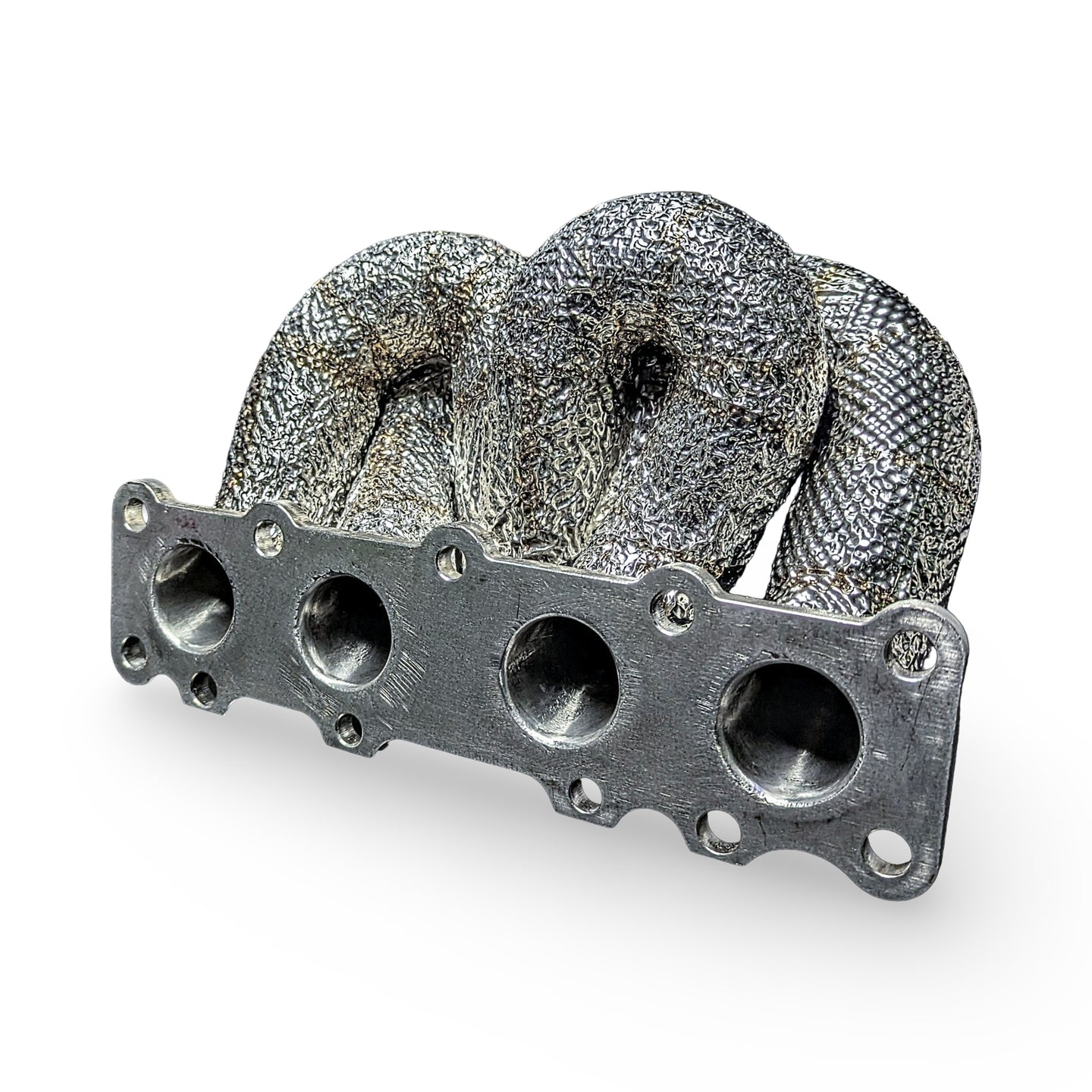

We use premium German-made racing heat shielding, featuring a 6mm layer of ceramic fiber insulation and a 0.2mm stainless steel capping, spot-welded for durability. This advanced design offers superior heat management and long-lasting protection.

Each manifold is handmade to order, with an optional weld-on heat protection shield—highly recommended for this application.

Experience the ultimate in turbo performance with the IFX Turbo Manifold—designed for power, precision, and durability.

Ask us about our installation service!

Features

• Stainless steel pipe & flanges
• 1.5inch thick wall pipe

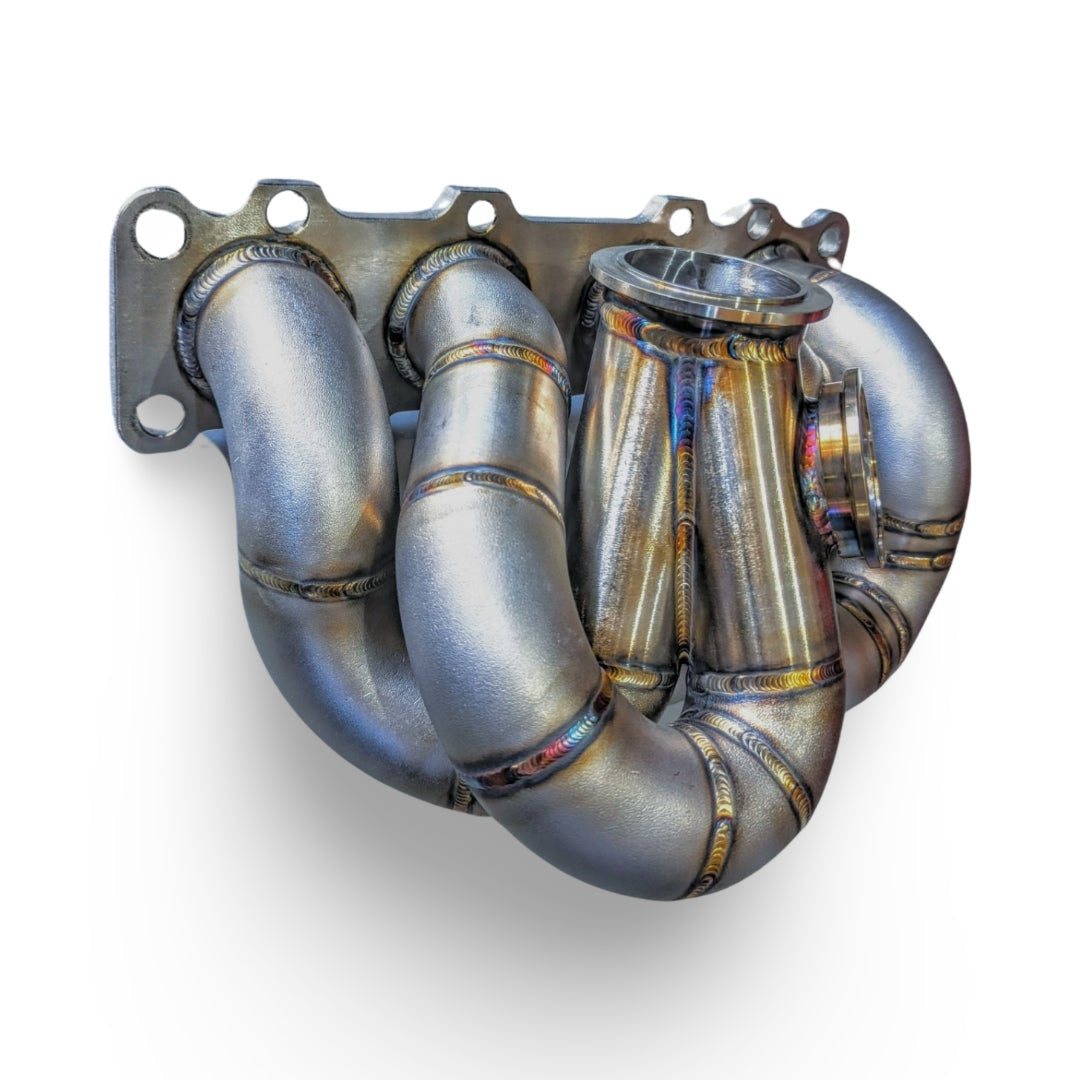

• Hand-made TIG welded and back gassed
• External wastegate
• Optional heat shielding

What you get

1x IFX i30N Hatch Turbo Manifold Vband to suit Garret G25 & Garret G30 (internal wastegate & external wastegate)

Suits

• i30N Hatch PFL 2018-2020
• i30N Hatch FL 2021-2023
• i30N Hatch FL2 2024
• i30N Fastback PFL 2018-2020
• i30N Fastback FL 2021+
