IFX 6-Inch Bell Mouth Air Intake Kit

We are excited to introduce you to the long-awaited IFX Hyundai i30 SR/N-Line Cold Air Intake Kit.

Our aim for our Hyundai i30 SR/ N-Line development program is to deliver high-performing parts and intelligent design with OEM quality. Our team are incredibly passionate about creative and innovative design while maintaining practicality, taking pride in our ability to achieve a flawless fit and finish, time after time.

We have put a lot of time into planning our parts development program for the i30 SR/ N-Line, with modular integration of future parts already designed into this 6-inch Bell Mouth Cold Air Intake, The largest available for the Hyundai i30 SR/ N-Line.

Benefits of fitting a Cold Air Intake

It's All About The Sound

The sound from the enormous 6-inch bell mouth is PURE. EAR. PORN.

The noise of the recirculation valve blasting back out the K&N High-Performance Air Filter is only something you can truly appreciate in real life!

Striking looks, Improved appearance

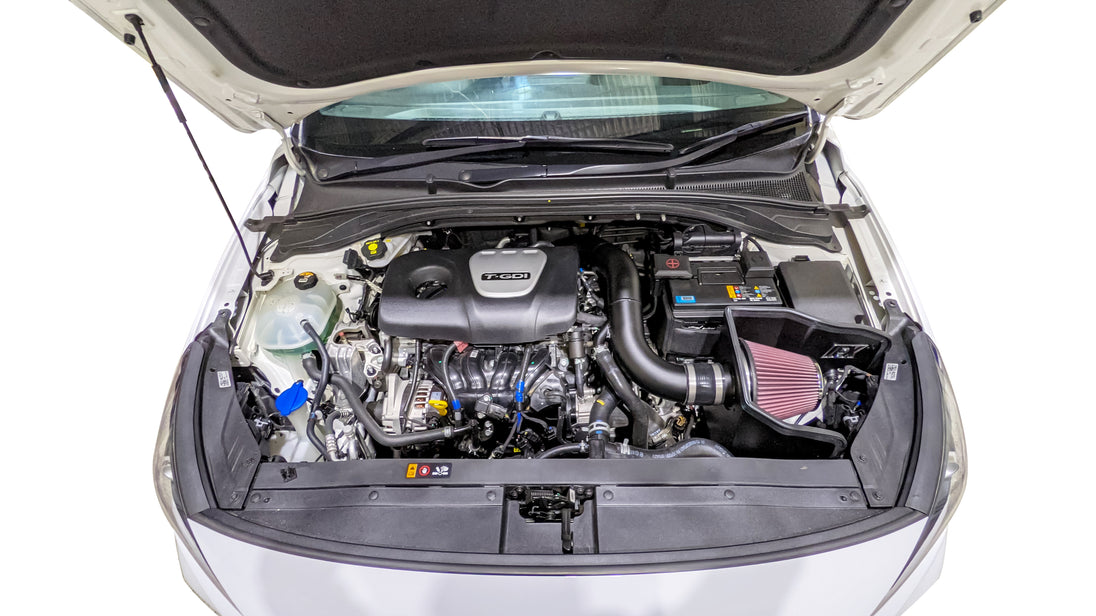

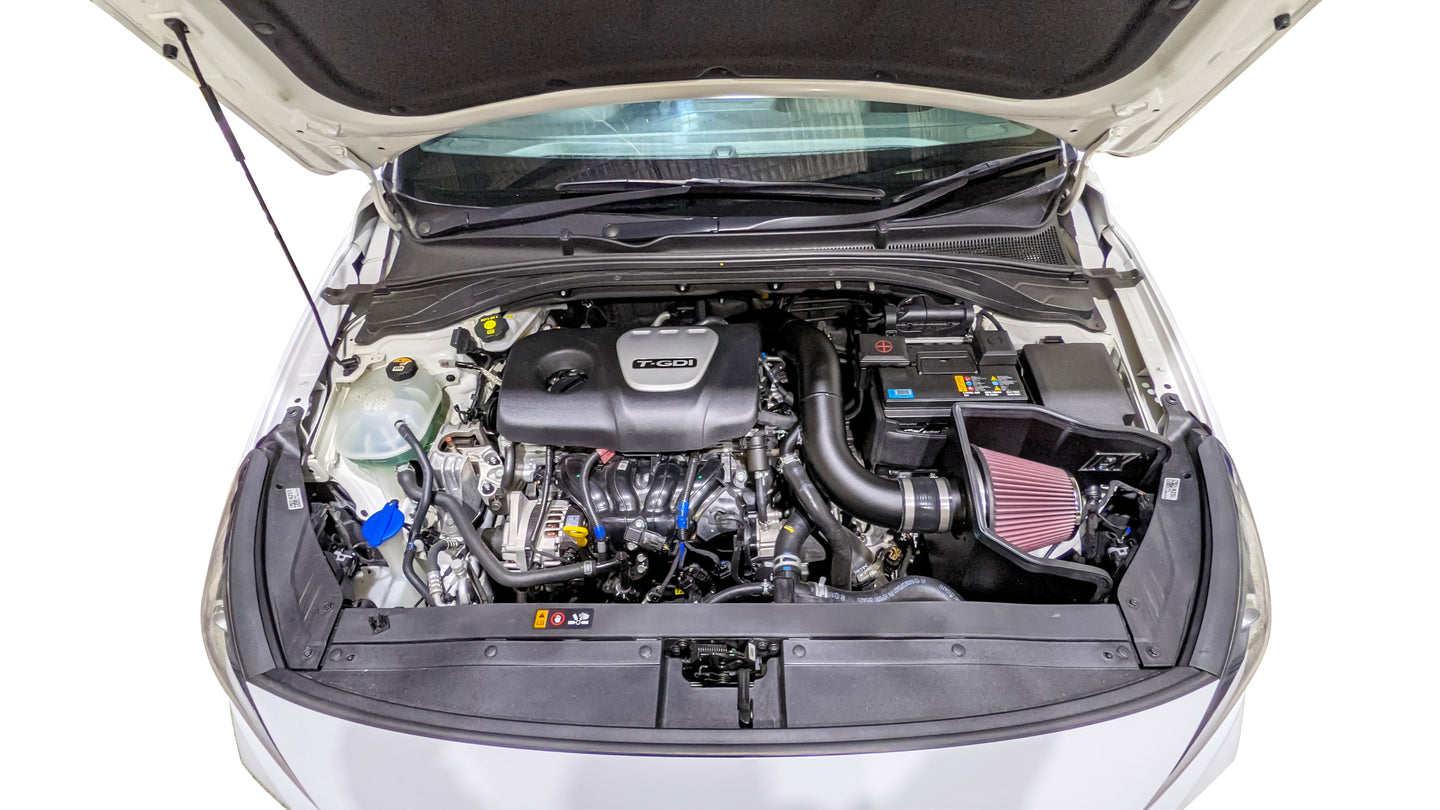

Gone are the days of having a factory engine bay to show off, unless you're buying a supercar. When you open up the bonnet of most new cars, you’ll most likely see a LARGE plastic cover hiding an ugly engine littered with sensors and parts that leave you scratching your head! Fitting a performance intake will give you a reason to open your bonnet and show off your engine.

Finer filtration, less restriction

There are several differences between the standard paper filter and the cotton-style 6-inch K&N Air Filter used in our IFX Intake Kit. The main difference is how the filters collect dirt particles.

In a paper filter, the filtration is done by layers of fine-grained paper, with each layer trapping finer dirt particles. This style of filter works well to trap dirt but causes poor airflow. Paper filters block up very quickly and have a significantly shorter working life with even shorter peak performance.

Cotton air filters capture dirt particles with oil in the filter. Since the oil is doing most of the dirt filtration, more air can flow through coarse holes. The other main advantage of a cotton-style air filter is that it's reusable, and there is less power loss between cleaning intervals.

K&N offers a 1 million MILE warranty (which is over 1.6 million kilometers) to put this in perspective, the factory filter would require replacement every 30,000km. You would go through 53 of them to every 1 K&N.

You can read more about how a cotton air filter works on K&N website.

The Art of Design

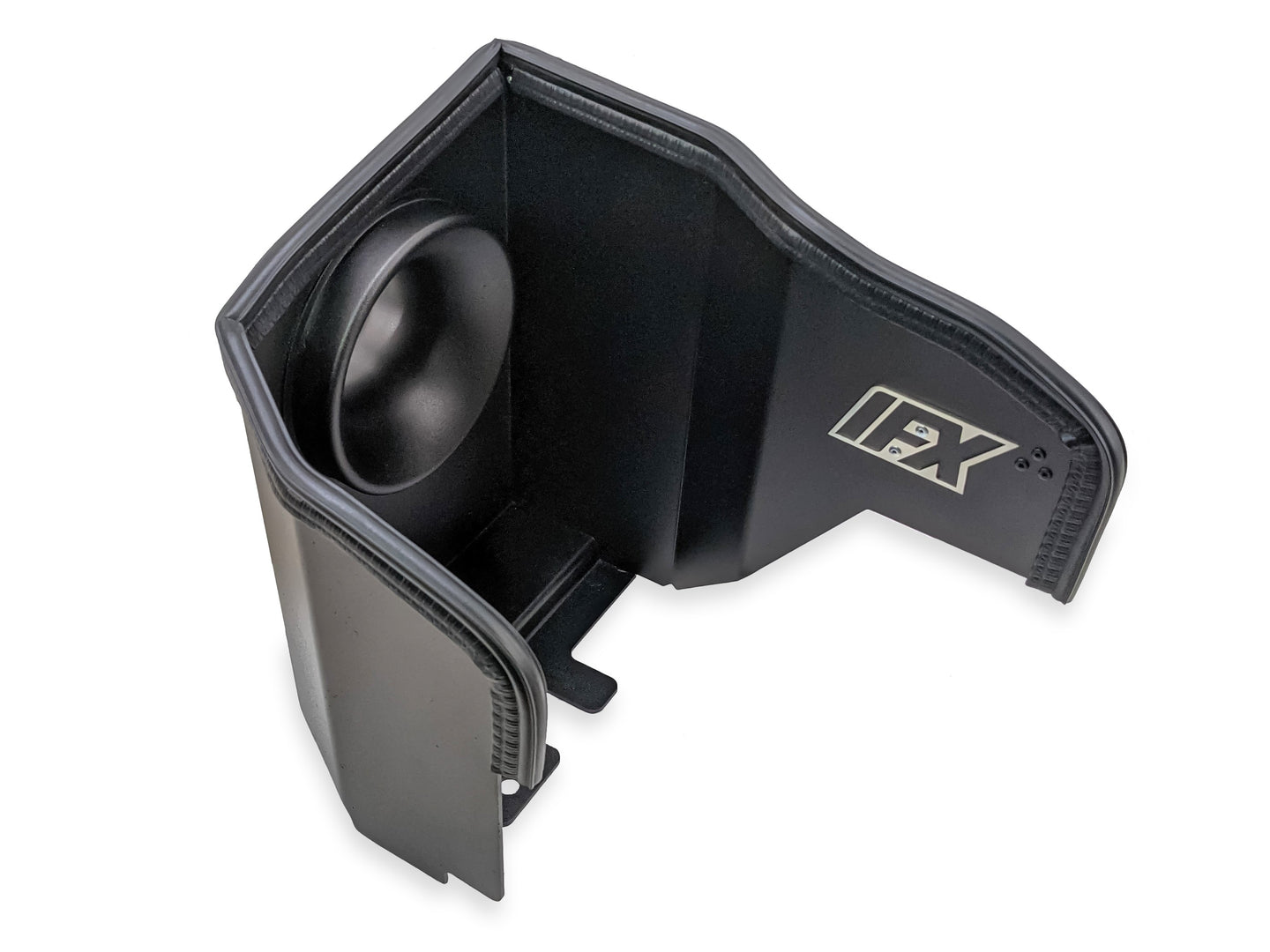

Air-box

Shape - The air-box is made up of a 5-sided design. The top edge of the air box makes contact with the bonnet, Sealing the box from the engine bay heat.

Mounting - We have utilised factory mounting points, which means no drilling or additional bolts are required for ease of installation.

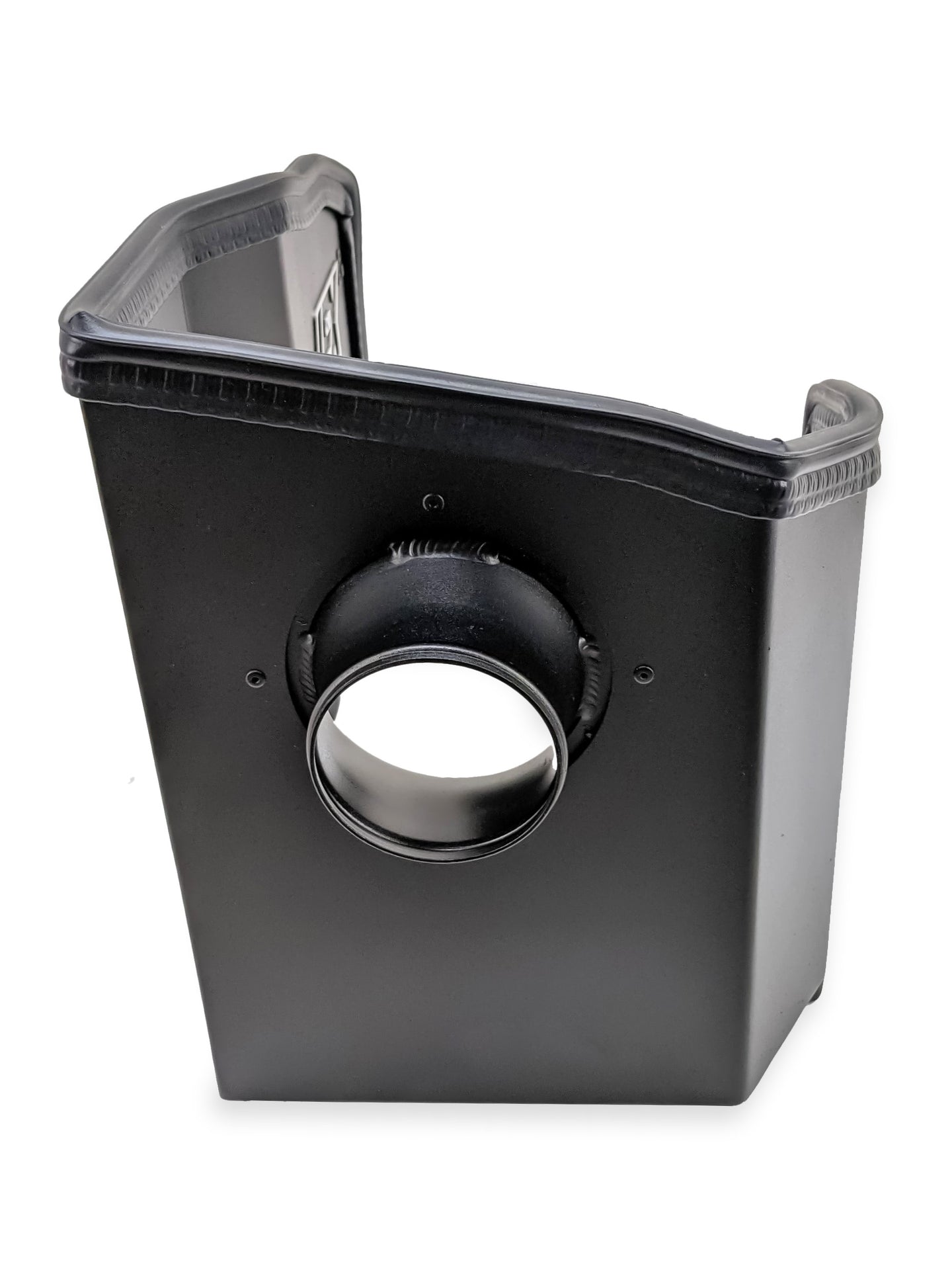

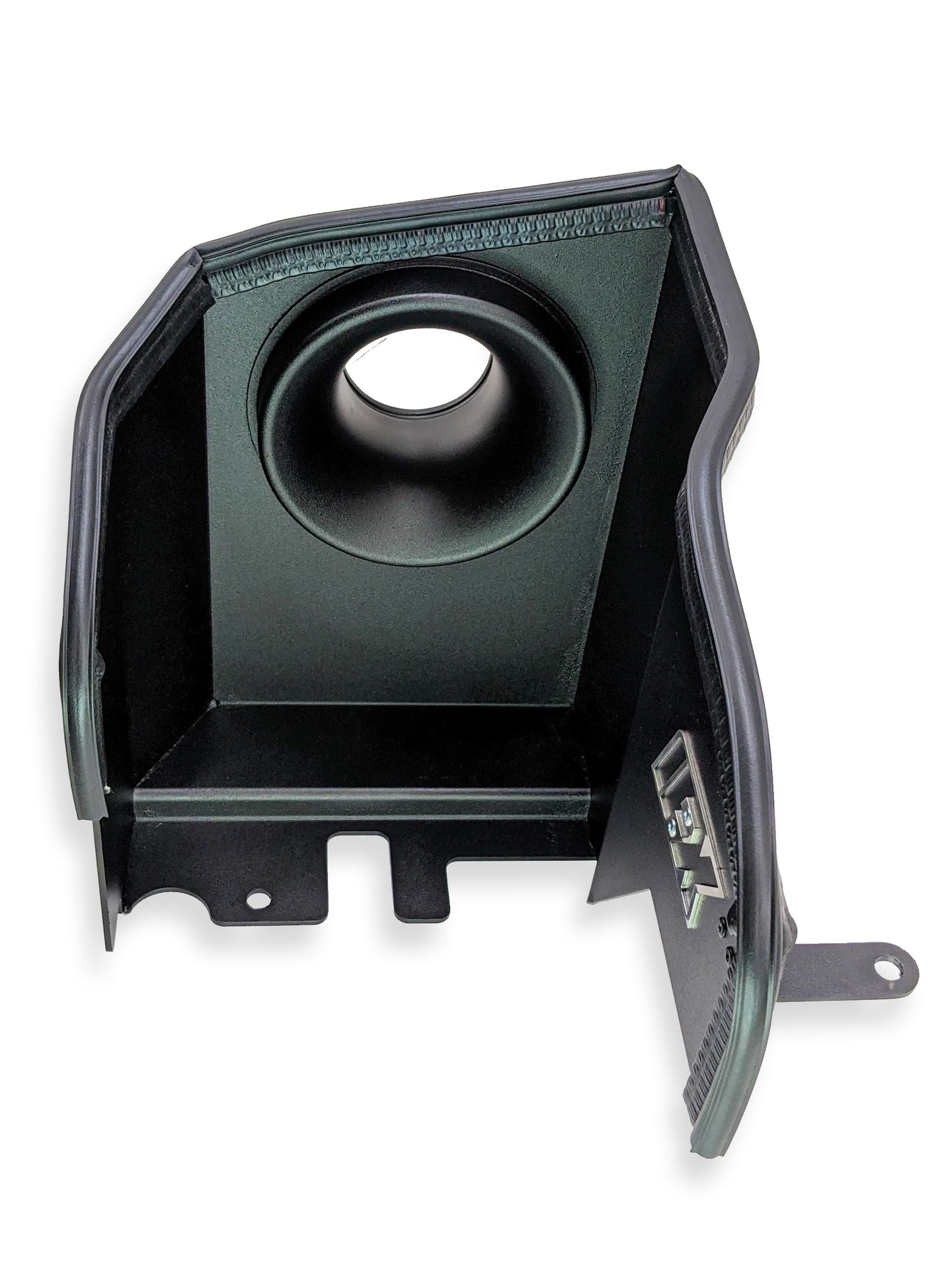

Bell Mouth - The use of a massive 6-inch to 3-inch bell mouth is the key to our design. Using a bell mouth significantly reduces air turbulence at the entry into the intake pipe and provides much better airflow over a conventional intake pipe inlet.

Seal - A durable rubber pinch mould seal is fitted along the top edge of the air box.
This seal aids in protecting the air filter from drawing hot air from the engine bay compartment.

Intake pipe

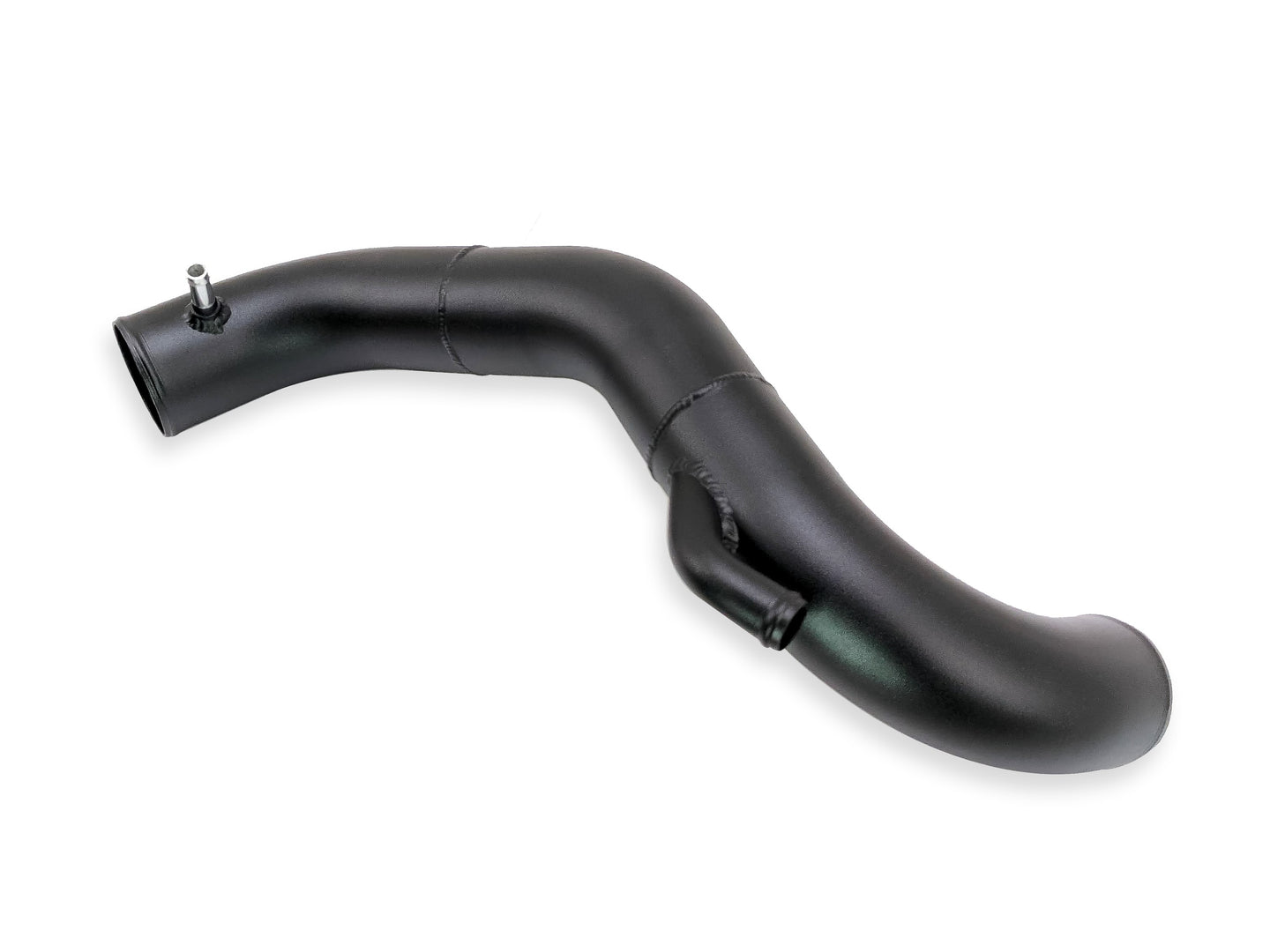

Tube - 3-inch aluminium tube with bead rolled ends.

BOV return pipe - The pipe is designed to be used with the stock re-circulation valve hose.

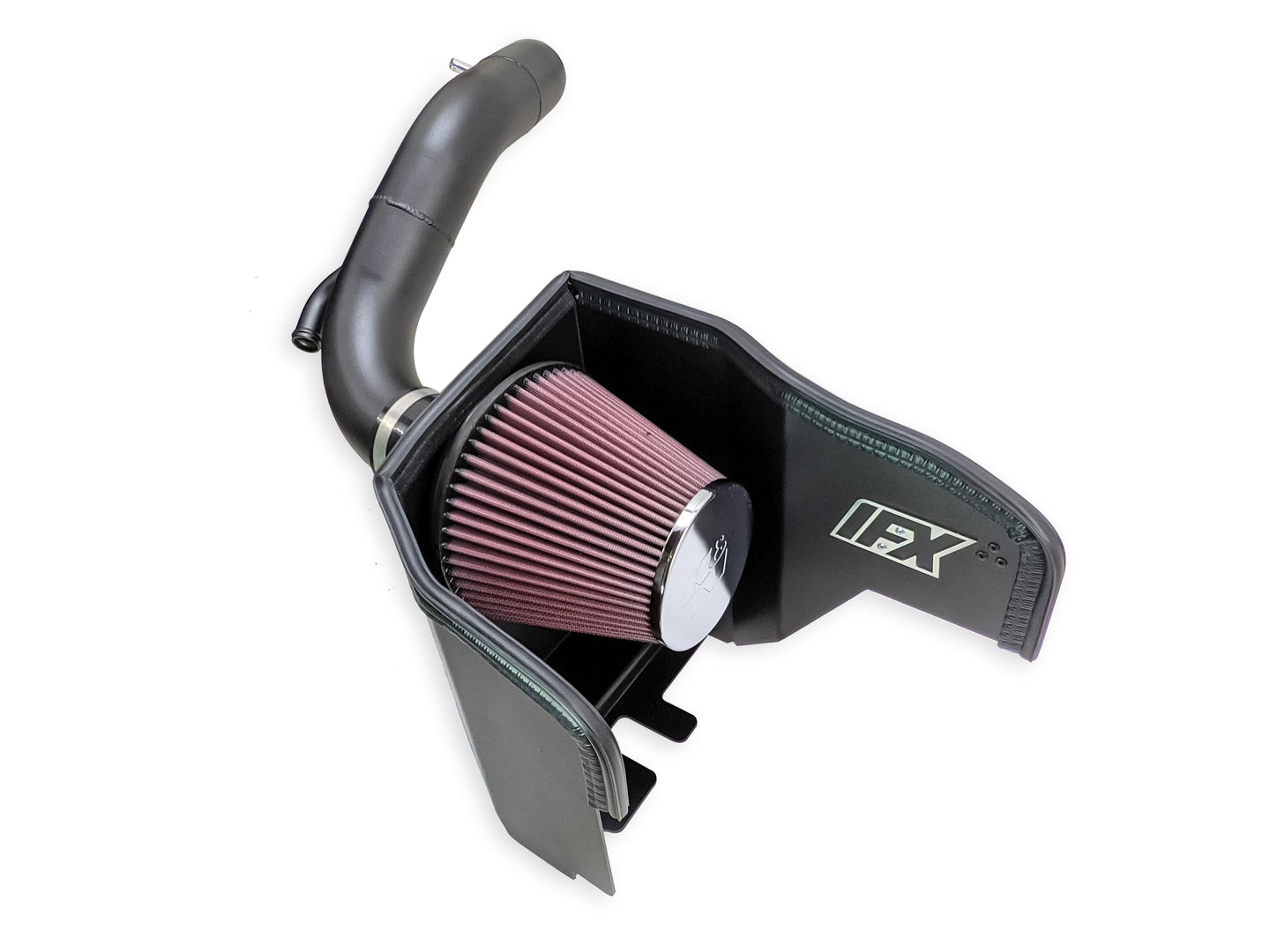

Air Filter

We have chosen the K&N 6-inch filter because we feel this filter has an excellent presence inside the i30N’s engine bay. We trust in K&N filters, and we think you will too. They are so sure of their product that they offer a 1 MILLION MILE WARRANTY!

Appearance

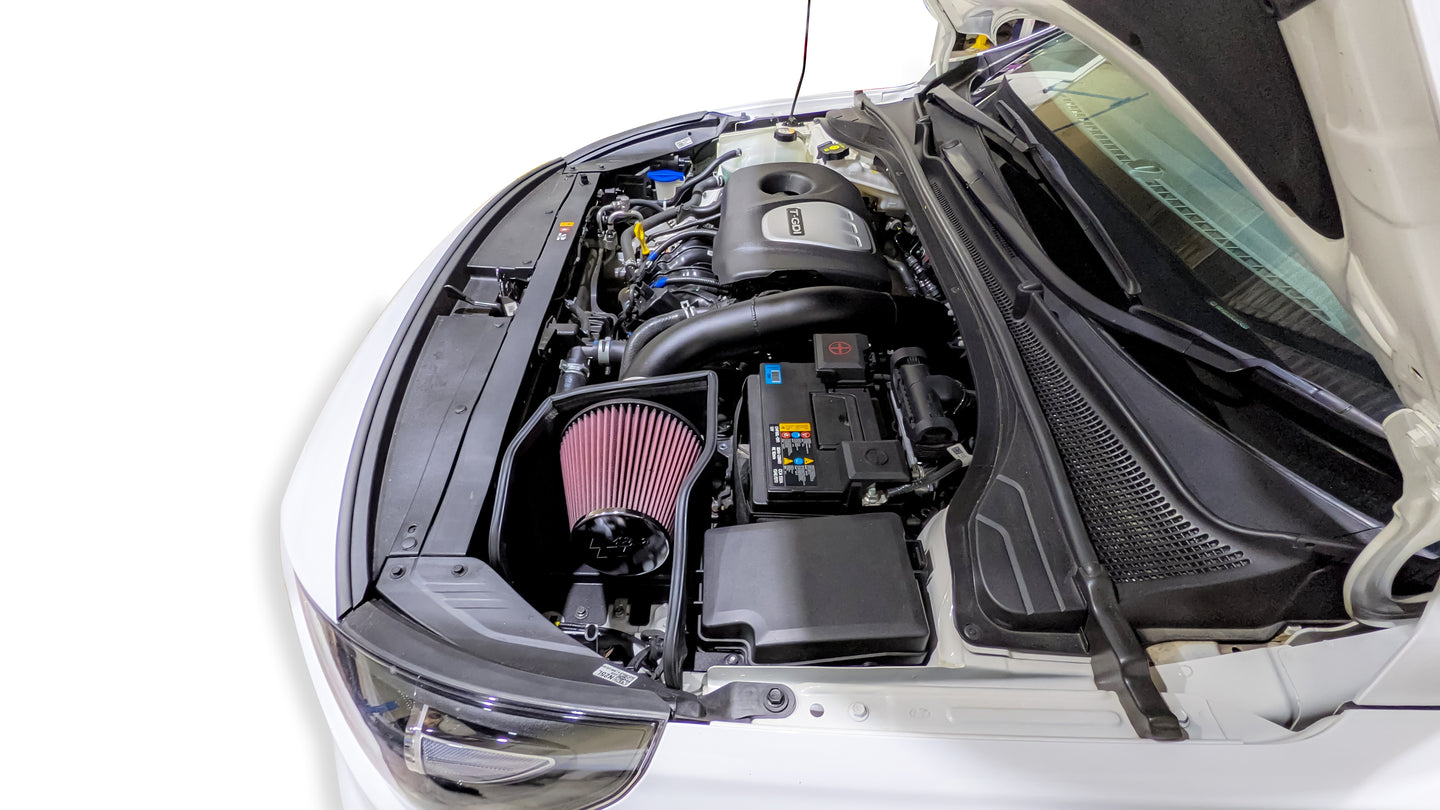

The 3-inch intake pipe and air box are powder-coated in stunning textured black. The textured coating gives the parts an OEM + feel and fits the overall look of the engine bay. We have matched the pipe up with black silicone hoses and Breeze stainless steel hose clamps to complete the look.

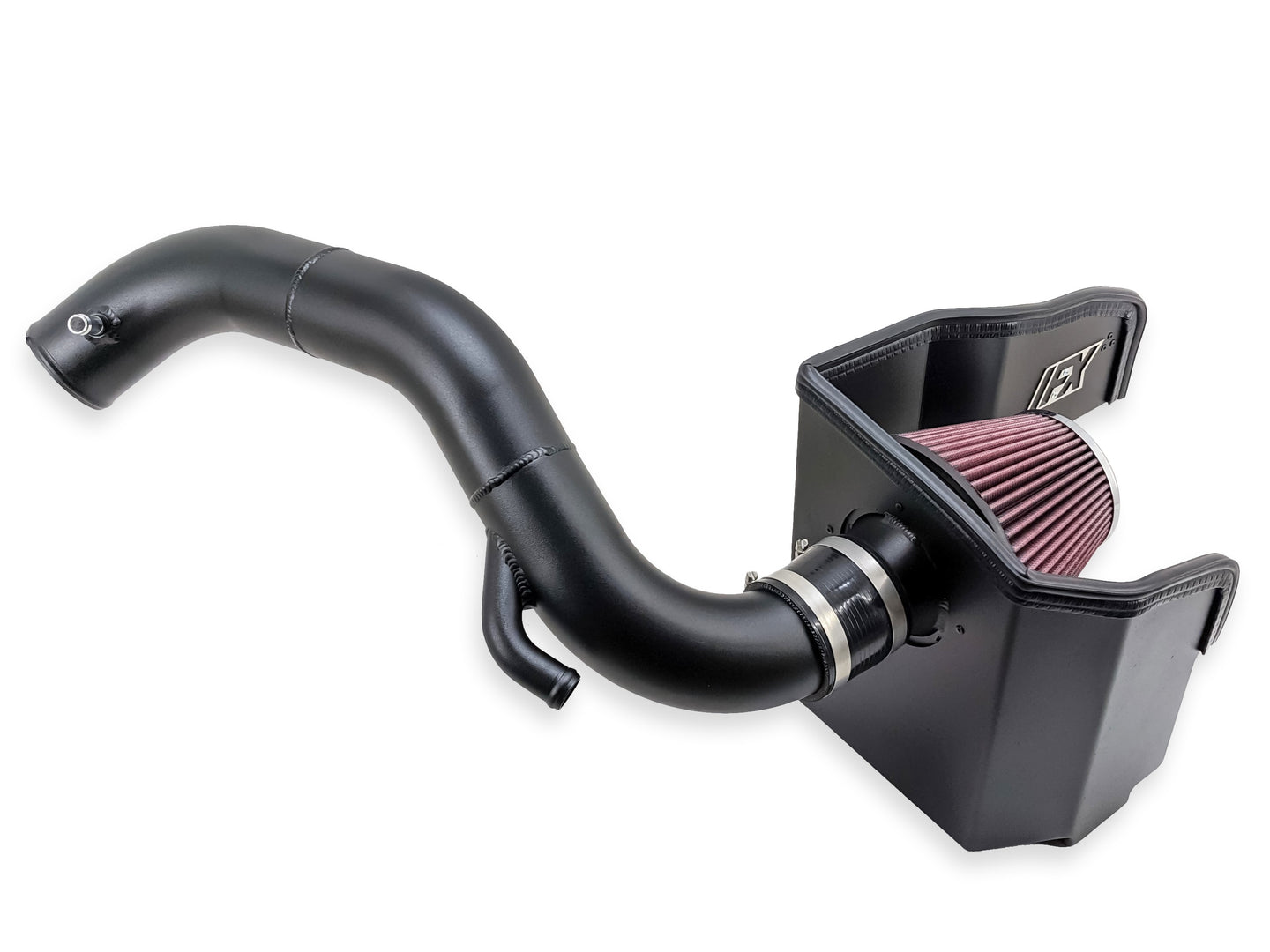

6 Inch Bell Mouth Kit Contains

Powder-coated black aluminium air-box, with 6-inch bell mouth and top blister rubber seal.

3-inch Aluminium intake pipe, with ½” hose tail

6-inch K&N cotton air filter (6-inch flange, 7.5> 4.5-inch body, 6-inches long)

4-ply Black silicone joiners.

Breeze worm drive hose clamps.

Suits

Hyundai i30N-LINE 2019-2024
Hyundai i30 SR 2018

Ask us about our installation service!
