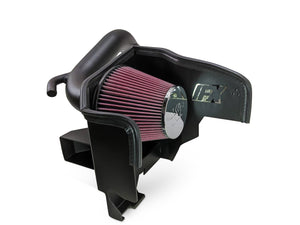

2021+ Hyundai I30 N DCT Cold Air Intake Kit, 6 Inch Bell Mouth, K&N Filter
HEY'YA 👋, Did you know we have a reputation for making the best-sounding intakes? YES? You'll be happy to know our Facelift DCT intake is no exception. We've taken the fundamentals from our original Hyundai i30n intake and created something new.
Let Me Tell You About It!
- 6 Inch K&N Filter
- Reusable ♻️
- 6 Inch Bell Mouth
- Amazing Intake Sound 🎶
- New Design, 3mm Aluminium Airbox
- Factory Intake Ducting 🧑🔬
- 3 Inch Aluminum Intake Pipe
- Sexy Black Powder Coat 💃
- 4 Ply Silicone Hose
- Nobody Wants Single Ply 🧻
- Stainless Steel Breeze Hose Clamps
- Easily The Best In The Business 🏆
- Assembled and Ready to Install
- Why Make Life Hard 😇
- Australian Made
- Because that's where we live 🇦🇺
🍄 KEEP READING TO KEEP GOOGLE HAPPY. Only if you want to know more, of course.
Benefits of Fitting a Cold Air Intake.
It's All About The Sound
Let's not kid ourselves. We're all kids at heart! The best thing about fitting an intake kit is hearing a spooling turbo. You can't beat that! It's just good! It's easily the cheapest way to make you smile.
Striking looks, Improved appearance
Gone are the days of showing off your engine bay. New car engine bays suck! But one thing to consider is if you fit an IFX intake, you'll have at least one thing to discuss.
Finer filtration, less restriction
Time to Put my Serious Voice on!
There Are several differences between the standard paper filter and the cotton-style 6-inch K&N Air filter used in the IFX intake kit. The main difference is how the filters collect dirt particles. In a paper filter, the filtration is done by layers of fine-grained paper, with each layer trapping finer dirt particles. This style of filter works well to trap dirt but causes poor airflow. Paper filters block up quickly and have a significantly shorter working life and even shorter peak performance. Cotton air filters capture dirt particles with oil in the filter. Since the oil does most of the dirt filtration, more air can flow through coarse holes. The other main advantage of a cotton-style air filter is that it's reusable, and there is less power loss between cleaning intervals. K&N offers a 1 million MILE warranty (which is over 1.6 million kilometers). To put this in perspective, a Hyundai factory filter would require replacement every 30,000km. You would go through 53 of them to every 1 K&N.
You can read more about how a cotton air filter works on the K&N website.
The Art Of Design
Time For Some More Keywords!
Air-box
Shape- The air-box is of a 5-sided design. The top edge of the air box makes contact with the bonnet, Sealing the box from the engine bay heat.
Mounting- We have utilized factory mounting points, which means no drilling or additional bolts are required for ease of installation.
Bell Mouth- The massive 6-inch to 3-inch bell mouth is the key to our design. Using a bell mouth significantly reduces air turbulence at the entry into the intake pipe and provides much better airflow over a conventional intake pipe inlet.
Seal- A durable rubber pinch mold seal is fitted along the top edge of the air box. This seal aids in protecting the air filter from drawing hot air from the engine bay compartment.
Ducting- hybrid airbox design accepts factory intake ductwork
Metal- Parts are laser cut from strong 3mm 5005 aluminum and folded in a CNC Brake Press
Coating- Powder Coated in House using OxyTech Ebony Texture Black
Badge- Laser Cut, Polished Stainless Steel Badge.
Construction- 4 individual sections welded together, Weld seams blended and sanded smooth. One piece appearance.
Intake pipe
Tube- 3-inch aluminum tube with bead rolled ends.
Bov return pipe- The pipe is designed to be used with the stock recirculation valve hose (BOV)
Hose Connection- Accepts factory breather hoses.
Air Filter
We have chosen the K & N 6-inch as the filter because this filter has an excellent presence inside the I30n's engine bay. They are so sure of their product that they offer a 1 MILLION MILE WARRANTY! We trust in K & N filters, and you will too.
Appearance
The IFX 3-inch intake pipe and IFX airbox are powder coated in stunning textured black. The textured coating gives the parts an OEM + feel and fits the overall look of the engine bay of your Hyundai I30n Facelift DCT. We have matched the pipe with black silicone hoses and Breeze stainless steel hose clamps to complete the look.
6 Inch Bell Mouth Kit Contains
Powder-coated black aluminum air-box, with 6-Inch Bell mouth and top blister rubber seal.
3 inch Aluminum intake pipe, with ½" and ⅜" hose tail.
6 Inch K&N cotton air filter. (6 inch flange, 7.5>4.5 inch body, 6 inch long)
4 ply Black Silicone joiners.
Breeze Worm drive hose clamps.
